Raynok Imperium G2 Console Wing
Launch Pads Loaded!
When Raynok users required multi-playback features with their Raynok Motion Control applications we answered with the Imperium G2.

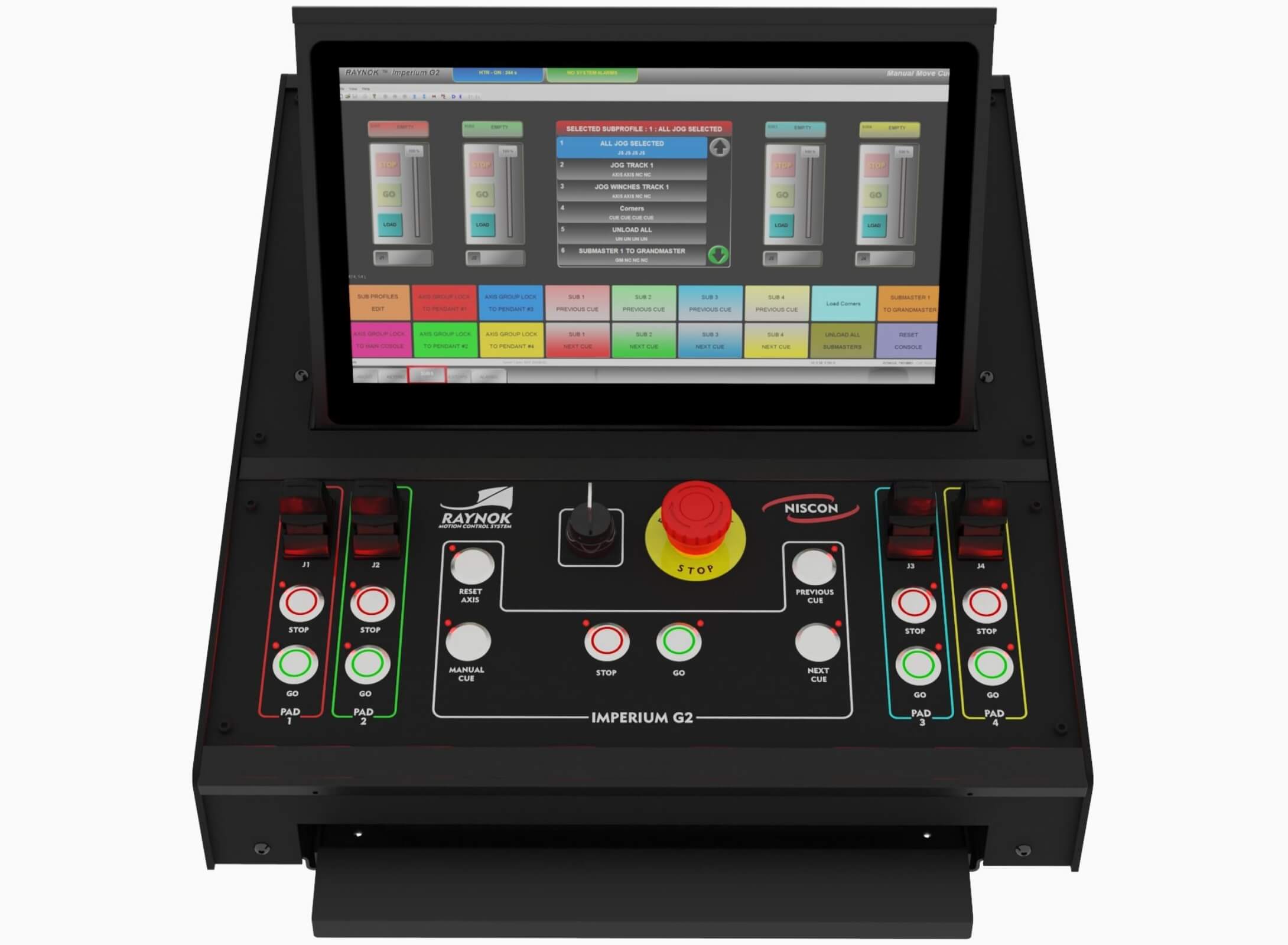

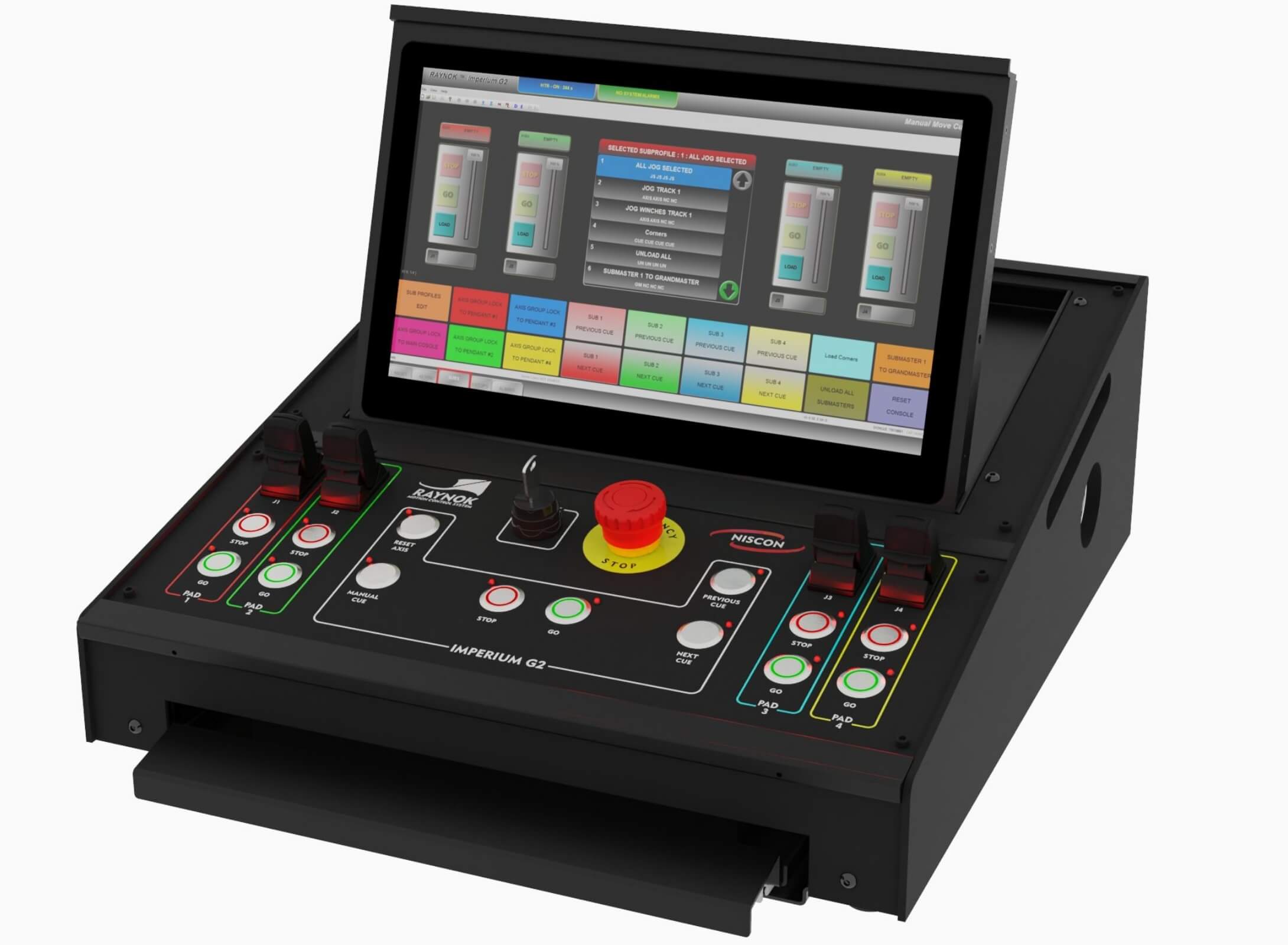

Designed on the Imperium form factor this console operates as a companion device to present the latest Raynok Technology, Launchpads. Raynok Launchpads provide low latency cueing during peak performance demand. Time sensitive cueing can be split across the launchpads for precise on demand GOs. Operators can monitor multiple axis on the fly. Target specific axes for profile modifications and take control when it is needed most.
With a focus on a more European style of cue structure this console is well suited for international projects or applications demanding micro focus.

Product Specs & Overview
TECHNICAL SPECIFICATIONS
Monitor Support: | 1 x 15″ (1920×1080) built-in touchscreen |
---|---|
Integrated PC: | Single (Raynok Launchpad Touch Interface Only)* |
Raynok License: | Raynok Launchpad Console License, requires RSL or R3D for external PC, sold separately |
Mouse/Pointer: | Capacitive Touchscreen or user provided |
Keypad/Keyboard: | Compact keyboard in a slide-out drawer |

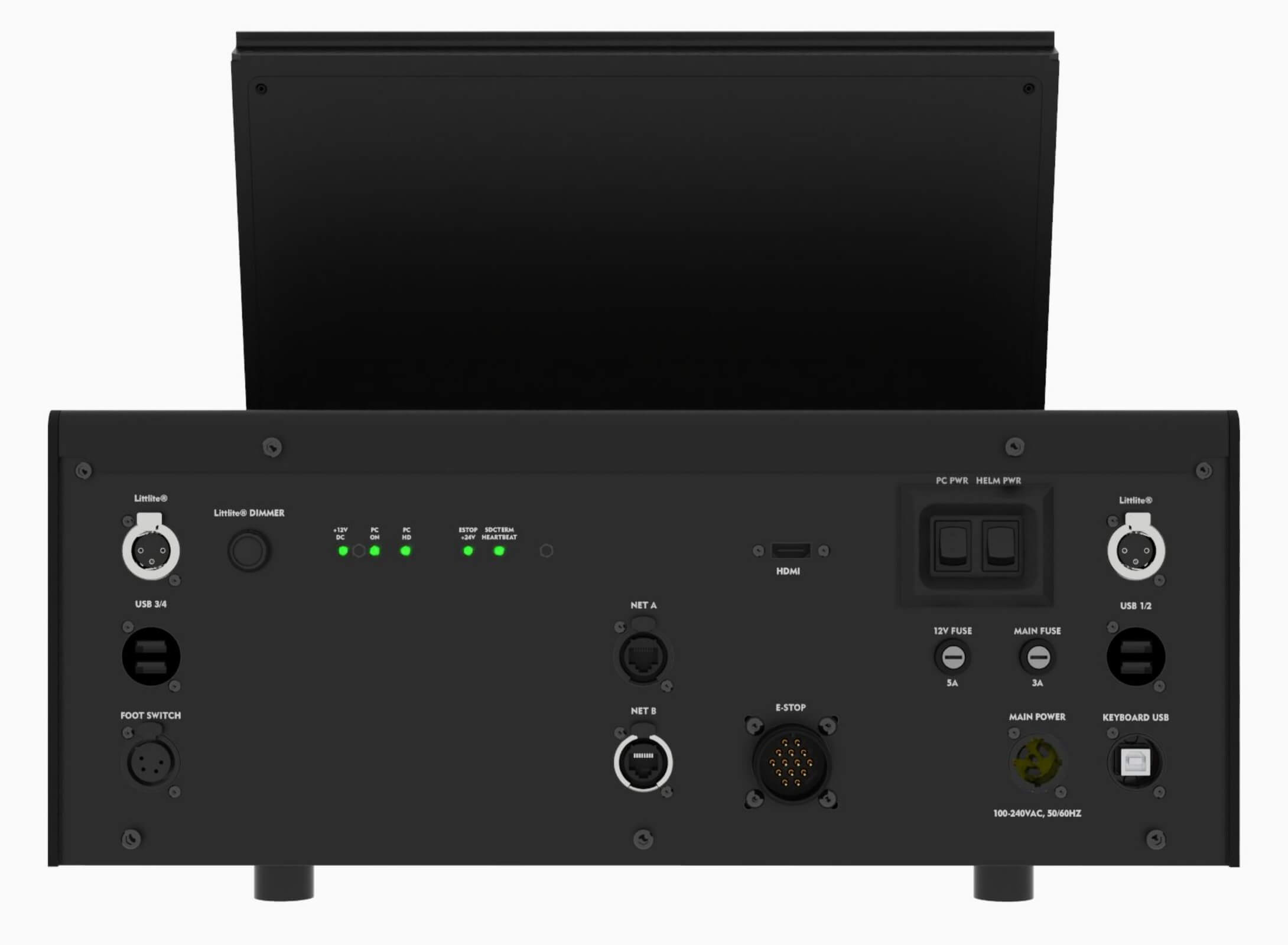

USB Ports: | Rear: 2 x USB-A, 1 x USB-B to external Raynok PC |
Macro Buttons: | 6 x dedicated (Cue operation), 4 x Go + 4 x STOP per launch pad |
Joystick: | 4 x single axis |
E-Stop System Controls: | 22mm red illuminated E-Stop actuator, dual channel, twist to release. Keyswitch for E-Stop System reset |
HOD-to-Run (HTR): | Footswitch operated HTR |
Cables Required: | Niscon Combined E-stop/Data/Power Console Cable, *cables sold separately* |
Power Requirements: | Voltage: 100-240VAC, 50/60Hz; Current: 1A@120VAC, 0.5A@230VAC |
Accessories Included: | 1 x Littlite w/ Dimmer, 1 x Console cover, 1 x HTR footswitch w/cable |
Optional Features/Accessories: | Console flightcase |
Form Factor: | Desktop |
Dimensions and Weight: | “19”W x 8”H x 22”D (482mm x 202mm x 555mm), 35lbs / 15.9kg” |
Colour: | Matte Black |
Part Number: | RAY-CNSL-IMPERIUM-G2-RSL |
