CONCISE, CREATIVE, INTUITIVE
software & solutions
UI, APP, GUI, whatever you call it the software of any product or system is the gateway to the user’s exploration of the systems within. It as at this point that the user of any device forms their longest lasting opinion of the hardware that forms any part of the system/
With the Raynok Software the user experience is enhanced by our intuitive approach to software development. In terconnect with other show systems via Raynok’s External Command Manager, ArtNET, or PSN. Manage your own devices using EtherCAT or work within the Raynok System products. Cue with confidence and get through the rehearsal and staging process faster and easier.
Explore the foundation of Raynok Motion Control, take a tour of our Software & Solutions. Visit our DOWNLOADS PAGE and try Raynok out for yourself. Follow this link for VERSION RELEASE NOTES

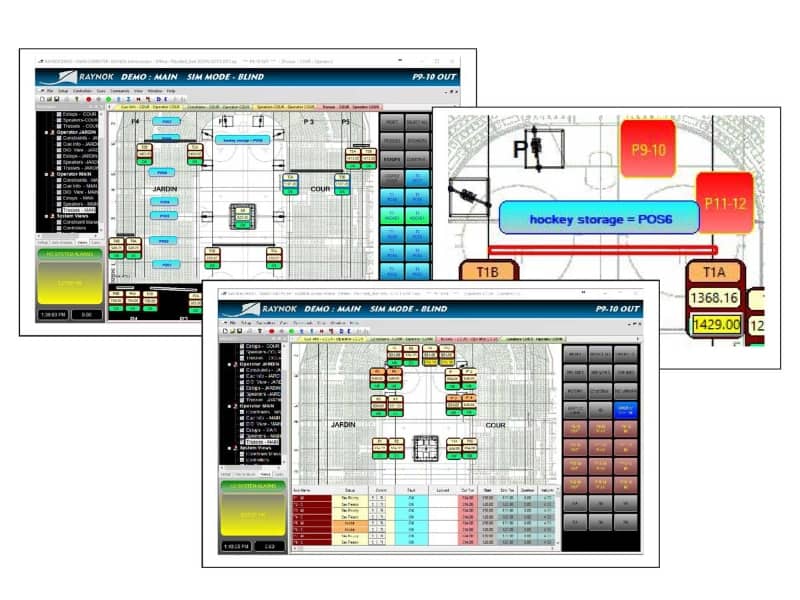

Raynok Software
Compact, Ergonomic, Powerful
Make it simple, customize the layout with buttons or lists, create flashing macros, access all machinery at once, or focus on a single hoist, configure constraints and interlocks to protect process. Raynok is configurable, customizable, intuitive, creative and the only software tool you’ll need for controlling stage machinery. And of course Engineer The Art Of Movement for your production.
Product Specs & Overview
TECHNICAL SPECIFICATIONS
| Type of Software: | Control Solution for stage and entertainment related machinery |
|---|---|
| Developer: | Niscon Inc., Burlington, Ontario, Canada |
| Applications: | Live Theatres, Concerts, Touring Productions, Television Studios, Circus Acts, Performer Flights, Animatronic Support, Museums, Sports Arenas, Night Clubs, Day Clubs, Kinetic Sculptures and more |
| Versions / Models: | Raynok Standard for basic motion (rotate, track, lift, pull, push), R3D for 3D motion & Performer Flight |
| Largest Installation: | 327 hoists, 6 consoles, 1 server, 3 interlocked E-Stop |
| Largest Wireless Installation: | Systems 118 hoists, 5 consoles, 1 server |
| Largest number of simultaneous Performer Flights: | 14 (6 single lines, 8 multiple line) |
| External Connections and Data Transmissions: | Transmit position data, run commands or status information via, DMX via USB interface, DMX over ArtNET, PosiStageNet or our own External Command Manager via UDP |
| Common Machines Controlled: | Wire Rope Hoists, Chain Hoists, Performer Hoists, SpiraliftTM, SerapidTM, Hydraulics, Pneumatics, Rollers (curtains), Banners, Stage Lifts, Trolleys, Cable Reels, and so much more |
| Training: | 30 to 40 hrs for Raynok Standard basic operations and additional 50 to 60 hrs for Performer Flight. Integrator training is available upon request. |
PRODUCT SUPPORT
5040 Mainway, Unit #6
BURLINGTON, ONTARIO, CANADA, L7L 7G5
Tel: 1 (905) 331 5779
Fax: 1 (905) 332-3440
North America Toll Free: 1 (866) 622-7773
Email: info@niscon.com
DOWNLOAD
Raynok Software Gallery
Raynok – The Right Product for Your Application
Concerts
Robust and ready for the demands of the road, Raynok is designed and built for the most demanding scenarios.
Live Production & Theatre
From the stage manager’s first GO to lift the curtain to the final scene, Raynok has the experience to control every move on every machine needed to present a theatrical experience.
Sporting Facilities
Sports Arenas – The multi-use venue. Raynok meets the challenge of Sports Arenas with its simple approach and intuitive UI design.
