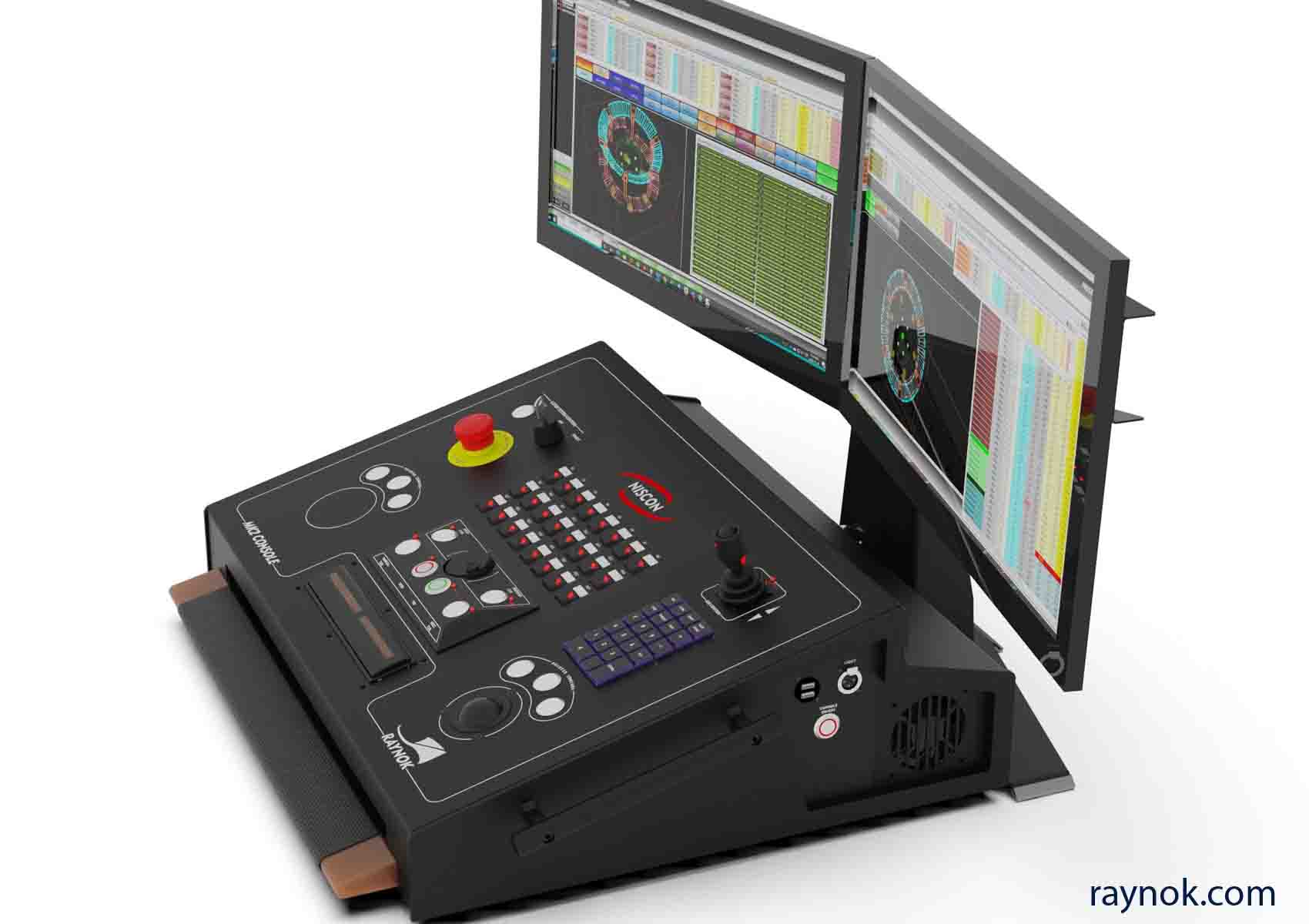

Raynok MK2 Operator Console
Compact, Ergonomic, Powerful
The Raynok MK2 has been designed with mission critical tasks in mind, featuring an abundance of user conveniences in a robust and reliable package.
The ergonomic placement of the 24 macro buttons, emergency stop operators, hold-to-run handle, pointer controls, and joystick provide the operator with comfortable operation so they can focus their attention on what matters. The action on stage. A fully redundant hot tracking backup SBC processor ensures this machine is always ready to raise the bar.
This workhorse is ready for any stage. Consider it for applications such as Traditional theatres, Performer flying, nightclubs, and wherever 3D motion is required.

Product Specs & Overview
TECHNICAL SPECIFICATIONS
Monitor Support: | 2 x 4k HDMI |
---|---|
Integrated PC: | Dual (Main/Backup) |
Raynok License: | Raynok Standard License, optional upgrade to R3D |
Mouse/Pointer: | Trackball with individual mouse buttons or user provided |
Keypad/Keyboard: | Compact keyboard in a slide-out drawer. XK24 numerical keypad |
USB Ports: | Rear: 6 x USB-A (2 x main pc, 2 x backup pc, 2 x KVM) |
Macro Buttons: | 6 x dedicated (Cue operation), 24 x programmable, 1 x feed rate wheel |
Joystick: | 1 x single axis |
E-Stop System Controls: | 22mm red illuminated E-Stop actuator, dual channel, twist to release. Keyswitch for E-Stop System OFF/ON/RESET and momentary reset pushbutton. |
HOD-to-Run (HTR): | Hand-operated illuminated HTR bar; Optional footswitch operated HTR |
Cables Required: | Niscon Combined E-stop/Data/Power Console Cable, *cables sold separately* |
Power Requirements: | Voltage: 100-240VAC, 50/60Hz; Current: 2A@120VAC, 1A@230VAC |
Accessories Included: | 1 x Littlite w/ Dimmer, 1 x Console cover, 2 x FHD monitors w/dual monitor stand |
Optional Features/Accessories: | HTR footswitch, PSN/ARTNet/media network connection, Console+Monitor flightcase |
Form Factor: | Desktop |
Dimensions and Weight: | “30”W x 10.5″”H x 24.5”D (765mm x 264mm x 627mm), console only; 45lbs / 20.5kg” |
Colour: | Matte Black |
Part Number: | RAY-CNSL-MK2-RSL |
