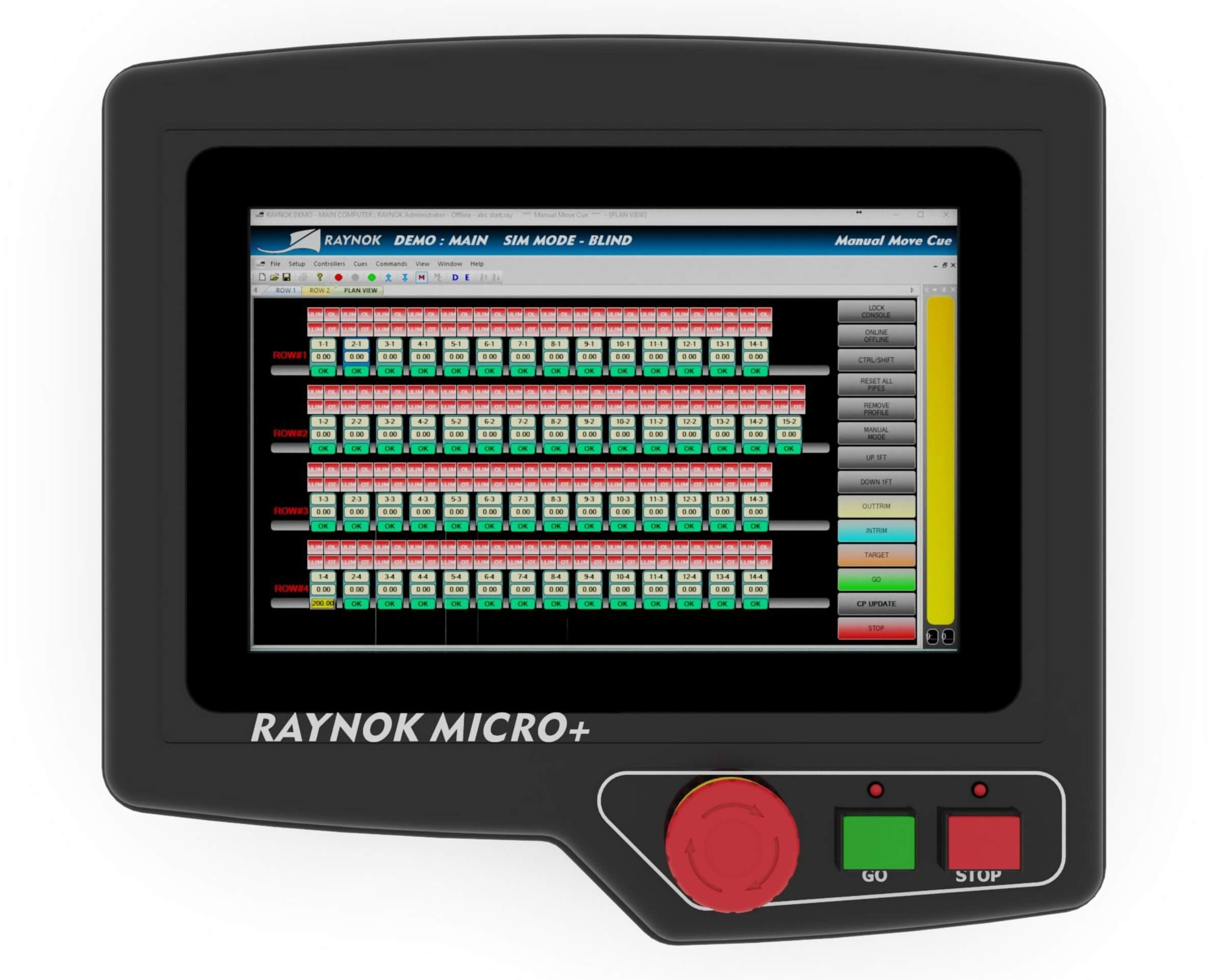

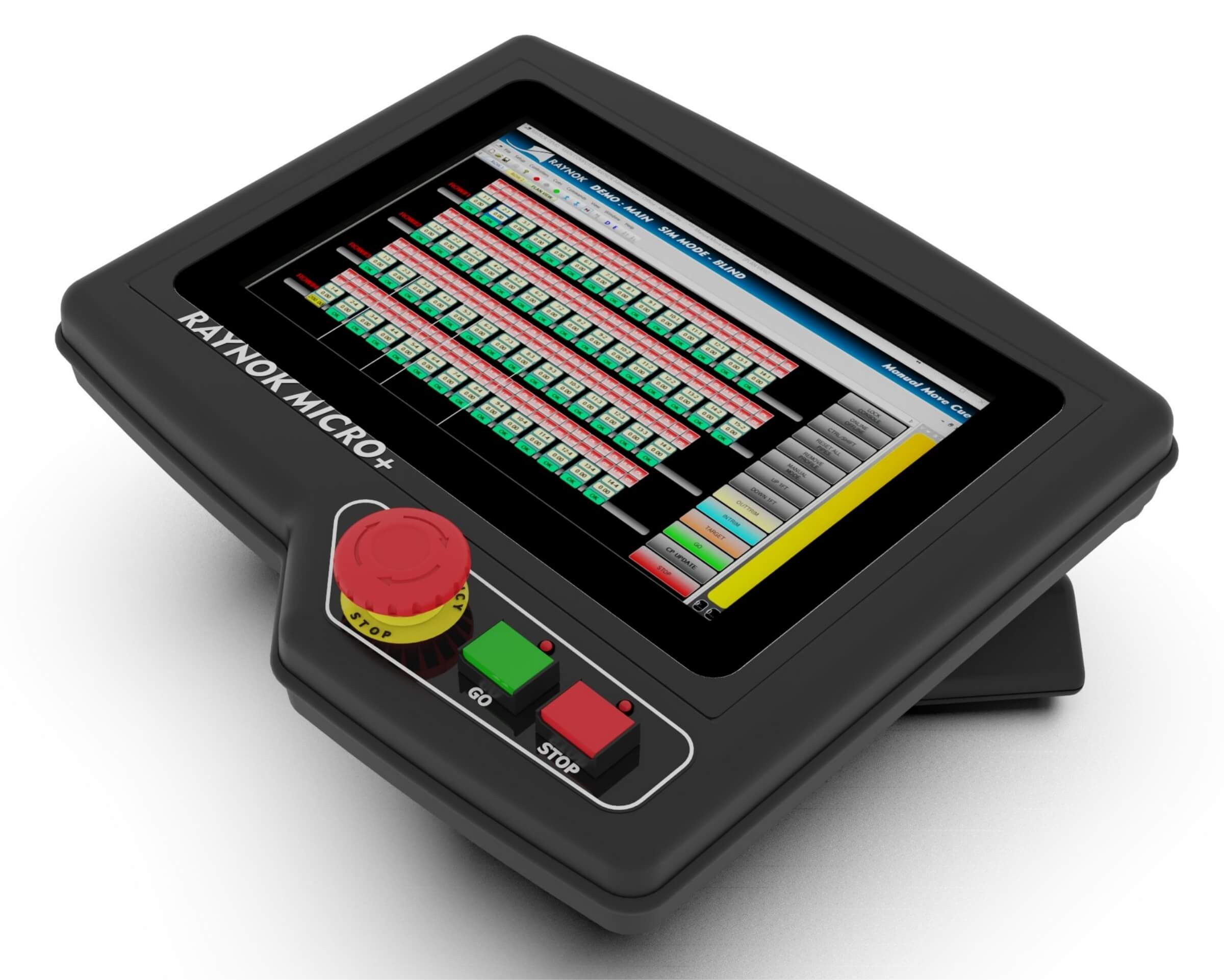

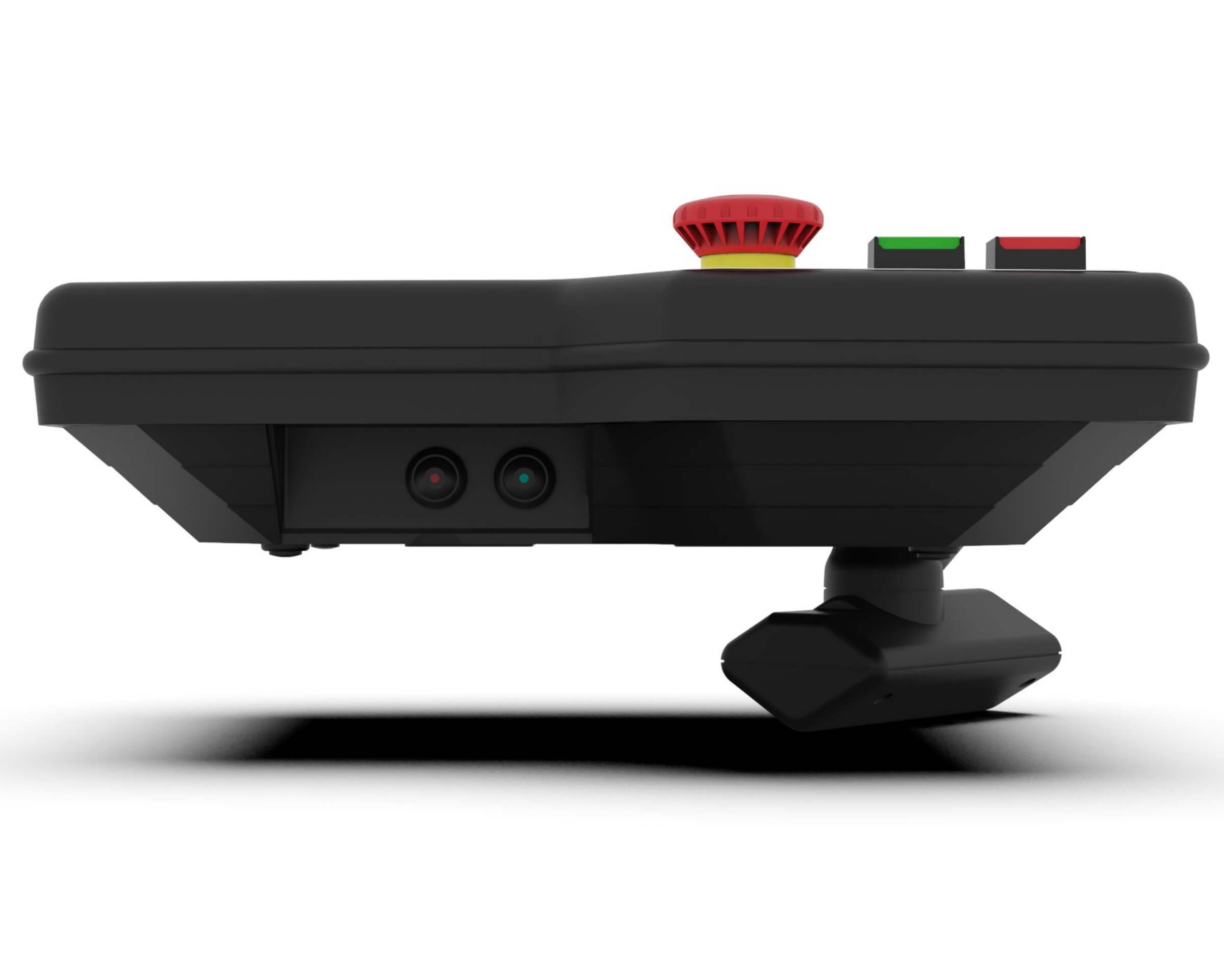

Raynok Micro+ Operator Console, Pendant
Economical, Compact, Convenient
All the power and portable too.
Suitable for any venue where the operator needs mobility, such as arenas, large or small theatres with multiple machines or touring productions. Great for regular maintenance, setup, and tear down procedures.
Product Specs & Overview
TECHNICAL SPECIFICATIONS
| Monitor Support: | 1 x 10.1″ (1280X800) built-in touchscreen |
|---|---|
| Integrated PC: | Single |
| Raynok License: | Raynok Standard License, optional upgrade to R3D |
| Mouse/Pointer: | Capacitive Touchscreen or user provided |
| Keypad/Keyboard: | On Screen or user provided |
| USB Ports: | Side cover: 2 x USB-A |
| Macro Buttons: | 2 x dedicated (GO/STOP) |
| Joystick: | n/a |
| E-Stop System Controls: | 22mm red illuminated E-Stop actuator, dual channel, twist to release. Push button for E-Stop System reset |
| HOD-to-Run (HTR): | Thumb-operated HTR |
| Cables Required: | Niscon Combined E-stop/Data/Power Console Cable, *cables sold separately* |
| Power Requirements: | Voltage: 100-240VAC, 50/60Hz; Current: 1A@120VAC, 0.5A@230VAC |
| Accessories Included: | 1 x Carrying/Storage case |
| Optional Features/Accessories: | n/a |
| Form Factor: | Portable |
| Dimensions and Weight: | 12.63”W x 11”H x 6”D (321mm x 287mm x 155mm) – with handle 6lbs / 2.8kg |
| Colour: | RAL 7021 black-grey |
| Part Number: | RAY-CNSL-MICRO-RSL-P |
PRODUCT SUPPORT
5040 Mainway, Unit #6
BURLINGTON, ONTARIO, CANADA, L7L 7G5
Tel: 1 (905) 331 5779
Fax: 1 (905) 332-3440
North America Toll Free: 1 (866) 622-7773
Email: info@niscon.com
DOWNLOAD Support Files
Raynok Micro+ Operator Console, Pendant
Raynok – The Right Product for Your Application
Concerts
Robust and ready for the demands of the road, Raynok is designed and built for the most demanding scenarios.
Live Production & Theatre
From the stage manager’s first GO to lift the curtain to the final scene, Raynok has the experience to control every move on every machine needed to present a theatrical experience.
Sporting Facilities
Sports Arenas – The multi-use venue. Raynok meets the challenge of Sports Arenas with its simple approach and intuitive UI design.
