LaunchBox Pro
Compact, Portable, Advanced
When Raynok users required multi-playback features with their Raynok Motion Control applications we answered with Launchbox Pro.
Designed on the new form factor this console operates as a companion device topresent the latest Raynok Technology, Launchpads. Raynok Launchpads provide low latency cueing during peakperformance demand. Time sensitive cueing can be split across the launchpads for precise on demand GOs. Operators can monitor multiple axis on the fly. Target specific axes or profile modifications and take control when it is needed most.
With a focus on a more European style of cue structure this console is well suited for international projects or applications demanding micro focus.

Product Specs & Overview
TECHNICAL SPECIFICATIONS
| MONITOR SUPPORT | N/A |
|---|---|
| INTEGRATED PC | None |
| RAYNOK LICENSE | Requires RSL or R3D License for external PC, sold separately |
| MOUSE/POINTER | N/A |
| KEYPAD/KEYBOARD | N/A |

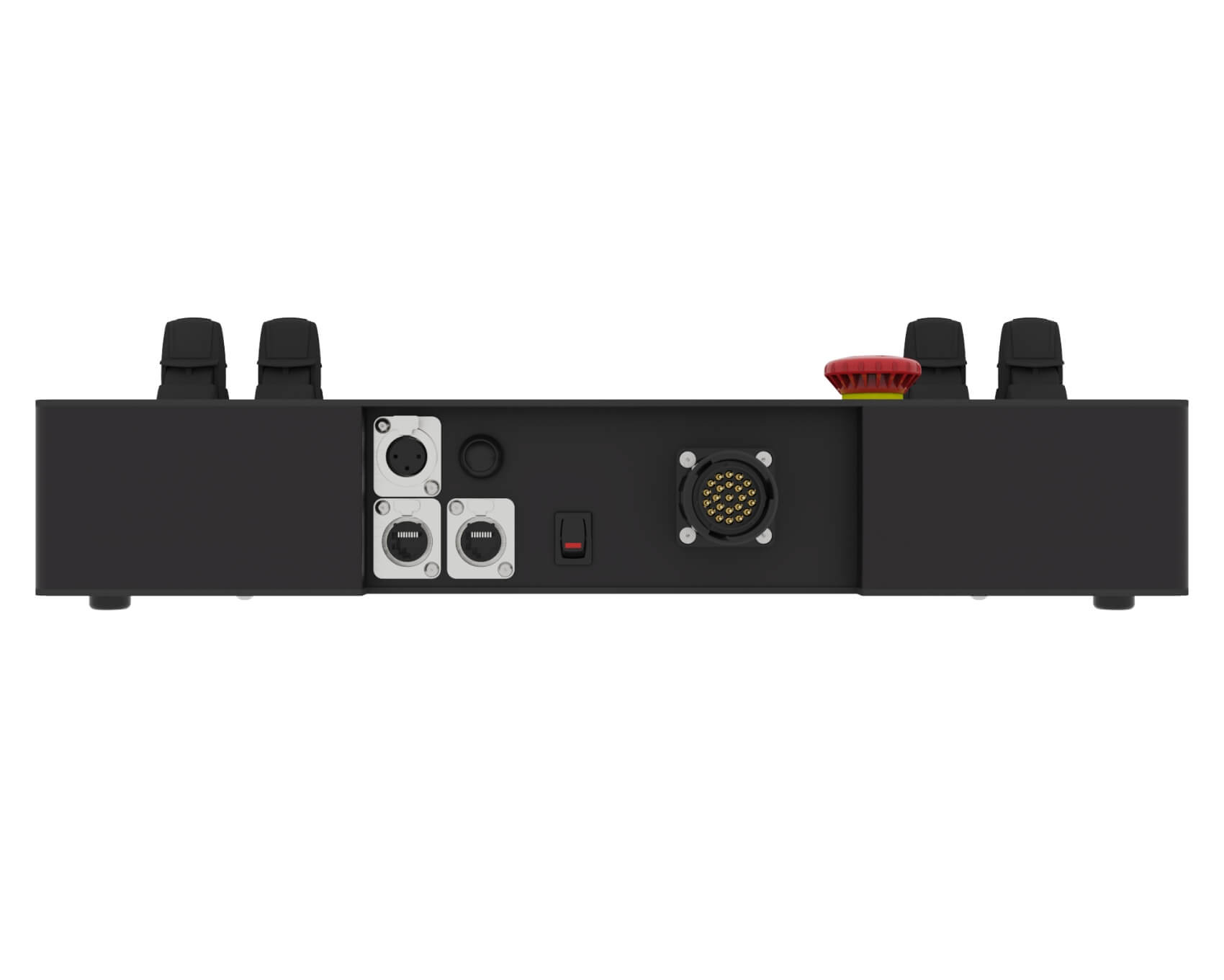

| USB PORTS | 1 x USB-B to external Raynok PC |

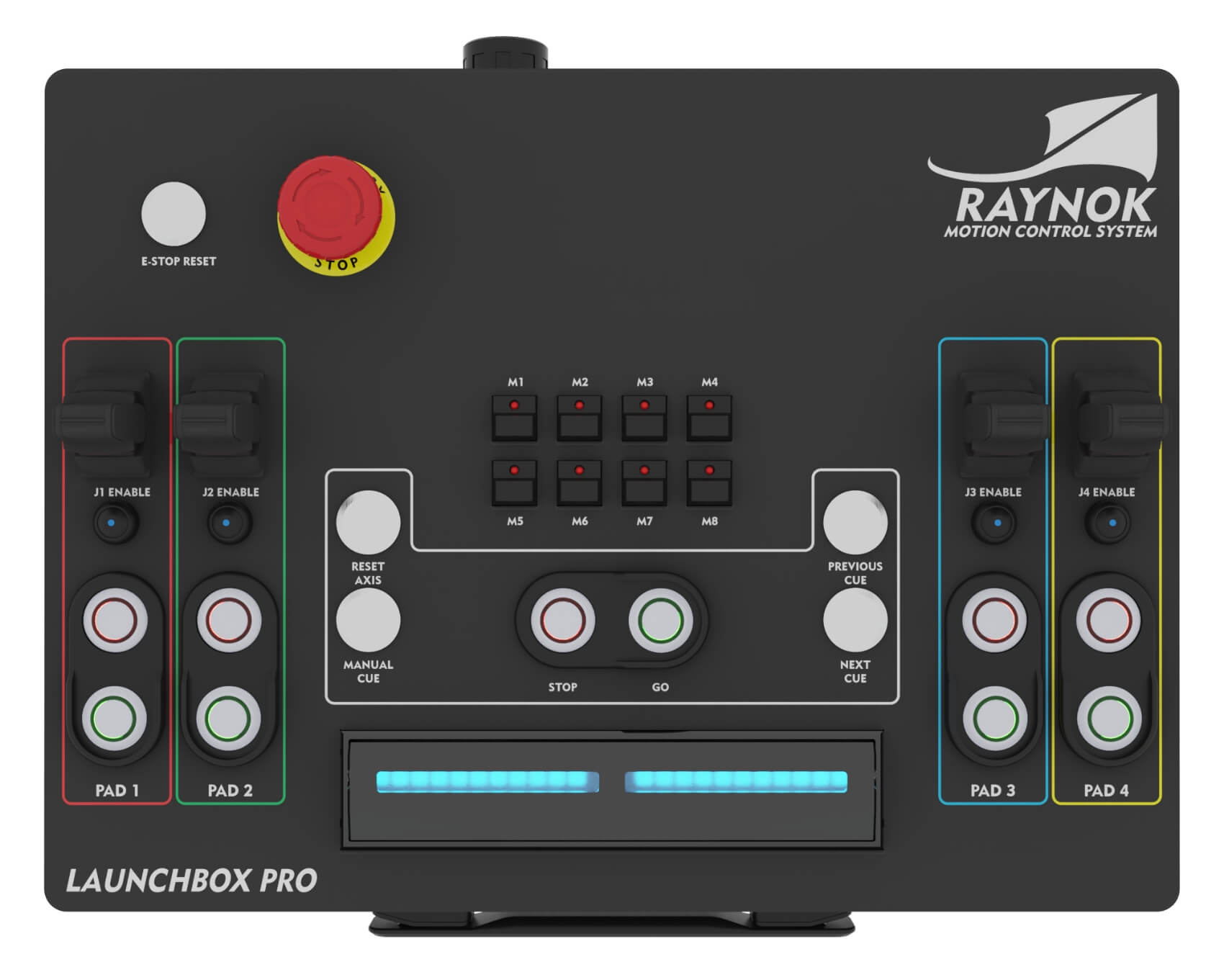

| MACRO BUTTONS | 12 x dedicated (6 x Helm operation, 2 each for each Launchpad) 8 x programmable |
| JOYSTICK | 4 x single axis |
| E-STOP SYSTEM CONTROLS | 22mm red illuminated E-Stop actuator, dual channel, twist to release. Momentary E-Stop System Reset pushbutton. |
| HOD-TO-RUN (HTR) | Hand-operated illuminated HTR bar Optional footswitch operated HTR |
| CABLES REQUIRED | Niscon Combined E-stop/Data/Power Console Cable, *cables sold separately* |
| POWER REQUIREMENTS | “Voltage: 100-240VAC, 50/60Hz Current: 1A@120VAC, 0.5A@230VAC” |
| ACCESSORIES INCLUDED | 1 x Littlite w/ Dimmer, 1 x Console Cover |
| OPTIONAL FEATURES/ACCESSORIES | HTR footswtich, Console flightcase |
| FORM FACTOR | Desktop |
| DIMENSIONS AND WEIGHT | 17.5”W x 5”H x 14.3”D (444mm x 127mm x 366mm) 8lbs / 4kg |
| COLOUR | Matte Black |
| PART NUMBER | RAY-CNSL-WING-LBPRO |
| RAYNOK PC SPECS AVAILABLE AT: | raynok.com/raynok-pc-specs |
