Imperium Operator Console
Just what you need
The Imperium console is not only a responsible solution for applications working on a fiscal budget, but it is also space conscious.

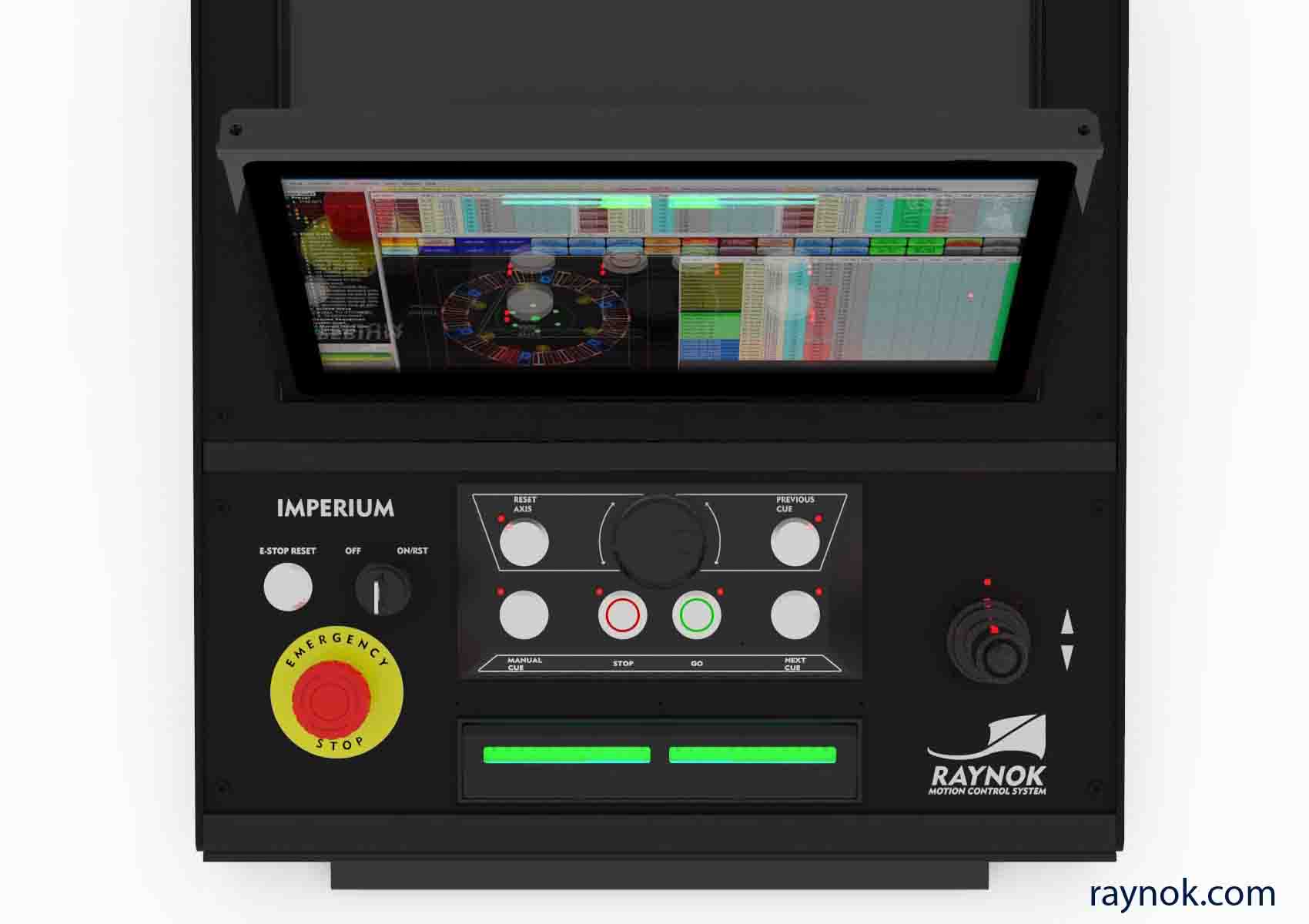

This sophisticated yet simple operator console runs the same powerful software the larger Raynok consoles boast but with a more compact form factor. It fits in tight spaces. Can be packaged for wallmount. It will fit in a modified equipment rack or stow neatly in a flight case ready for the road. External monitor ports expand the visual display real estate of the onboard 15” touch screen.
Initially designed for road shows, this console is just as comfortable in school auditoriums, houses of worship or any application requiring its compact format.

Product Specs & Overview
TECHNICAL SPECIFICATIONS
Monitor Support: | 1 x 15″ (1920×1080) built-in touchscreen, 2 x 4k HDMI |
---|---|
Integrated PC: | Single |
Raynok License: | Raynok Standard License, optional upgrade to R3D |
Mouse/Pointer: | Capacitive Touchscreen or user provided |
Keypad/Keyboard: | Compact keyboard in a slide-out drawer |
USB Ports: | Rear: 4 x USB-A |
Macro Buttons: | 6 x dedicated (Cue operation), 1 x feed rate wheel |
Joystick: | 1 x single axis |
E-Stop System Controls: | 22mm red illuminated E-Stop actuator, dual channel, twist to release. Keyswitch for E-Stop System OFF/ON/RESET and momentary reset pushbutton. |
HOD-to-Run (HTR): | Hand-operated illuminated HTR bar; Optional footswitch operated HTR |
Cables Required: | Niscon Combined E-stop/Data/Power Console Cable, *cables sold separately* |
Power Requirements: | Voltage: 100-240VAC, 50/60Hz; Current: 1A@120VAC, 0.5A@230VAC |
Accessories Included: | 1 x Littlite w/ Dimmer, 1 x Console cover |
Optional Features/Accessories: | HTR footswitch, PSN/ARTNet/media network connection, Console+Monitor flightcase |
Form Factor: | Desktop |
Dimensions and Weight: | “19”W x 8”H x 22”D (482mm x 202mm x 555mm), 35lbs / 15.9kg” |
Colour: | Matte Black |
Part Number: | RAY-CNSL-IMPERIUM-RSL |
